| Capacity | 1500VA / 900W |
|---|
| INPUT |
| Nominal Voltage | 220 - 240VAC |
|---|
| Voltage Range | 165 - 290VAC |
|---|
| Frequency | 50 / 60Hz (Auto sensing) |
|---|
| Input Connections | BS 1363A Plug to IEC 320 C13 |
|---|
| OUTPUT |
| Nominal Voltage (Battery Mode) | 220 - 240VAC |
|---|
| Frequency (Battery Mode) | 50Hz / 60Hz ± 1% |
|---|
| Total Harmonic Voltage Distortion (THDv) | ≤ 3% @ linear load, ≤ 5% @ non-linear load |
|---|

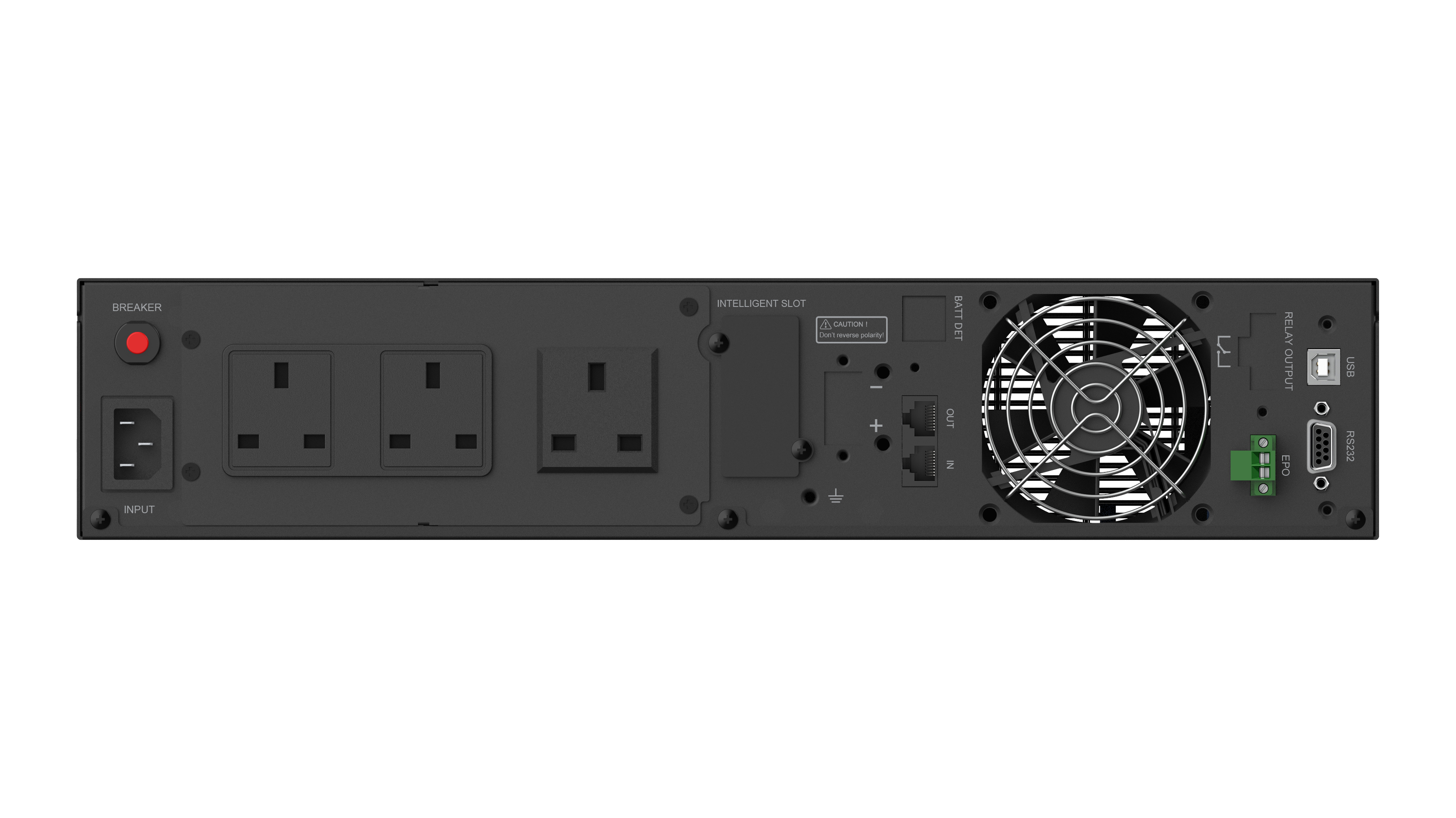

| Output connections | (3) BS 1363A |
|---|
| TOPOLOGY |
| Transfer Time | 4ms (Typical) |
|---|
| Waveform (Battery Mode) | Pure sinewave |
|---|
| BATTERIES |
| Battery Voltage | 24V |
|---|
| Battery Type | 12V 7AH |
|---|
| Typical Recharge Time | 4 hours recover to 90% capacity |
|---|
| Charging Current | 1A |
|---|
| SYSTEM |
| LCD Display | Input Voltage, Output Voltage, Battery Percentage, Load Percentage and Faults |
|---|
| Audible Alarm | On Battery, Low Battery, Overload, Faults |
|---|
| SAFETY |
| Overload Protection | On Utility: Circuit Breaker
On Battery: Internal Firmwave Protection |
|---|
| RJ11 / RJ45 Surge Protection | Yes |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| COMMUNICATION / MANAGEMENT |
| Auto Recharge | Yes |
|---|
| Auto Restart | Yes |
|---|
| USB Communication Port | HID Enabled |
|---|
| Intelligent Slot | SNMP (Optional) |
|---|
| Software | Windows 2000 / XP / 7 / 8 / 10 / Server 2003 / Vista / Server 2008 |
|---|
| STANDARDS / APPROVALS |
| Compliances | CE, RoHS |
|---|
| IP Rating | IP 20 |
|---|
| ENVIRONMENT |
| Operating Humidity | 0% - 90% (non-condensing) |
|---|
| Operating Temperature | 0℃ - 40℃ |
|---|
| PHYSICAL PROPERTIES |
| Dimensions ( W x D x H ) (mm) | 438 x 430 x 88 |
|---|
| Net weight (kg) | 14.68 |
|---|
| WARRANTY & SUPPORT |
| Product Warranty | 3 Years Full Warranty For Parts and Labour. 2 Years For Batteries |
|---|
