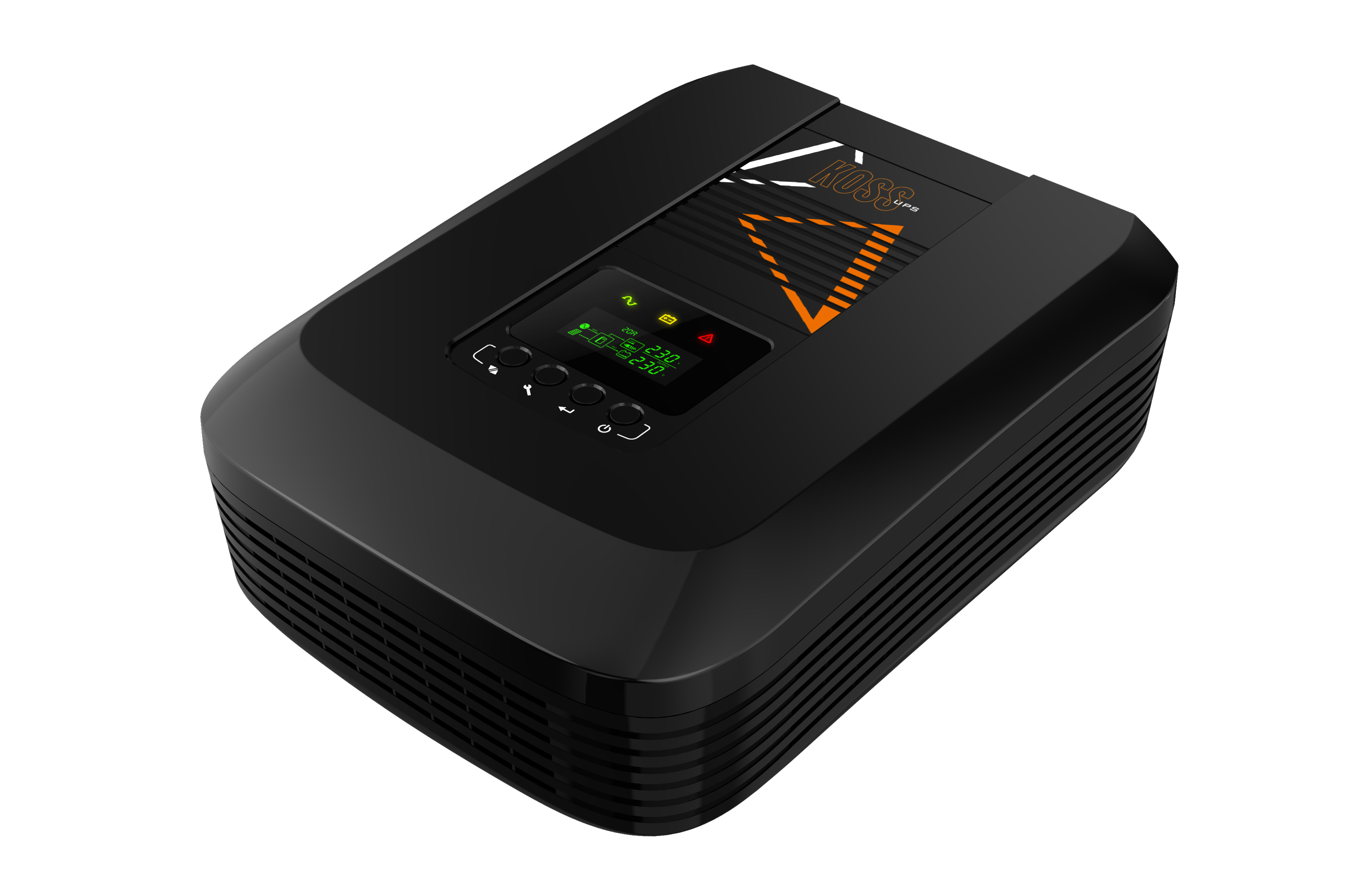

Inverex WS Series

Product Features

Automatic line-to-battery switchover
Built-in enhanced AC charger
Selectable input voltage ranges / charging
High efficiency DC-to-AC conversion with minimized energy loss
Rack design & wall-mounted design for flexible installation
Intelligent 3-stage charger control for efficient charging and preventing overcharge
Auto restart upon AC recovery
User-friendly LCD and LED indications with setting function
With the environmental temperature control charge management
Multiple protections: low battery alarm, low battery shutdown, over charger protection, overload protection, over temperature protection, short circuit protection

MODEL	INVEREX 1200WS
Capacity	1200VA / 1000W
INPUT
Nominal Voltage	220VAC - 240VAC
Voltage Range	Wide Mode: 90VAC-280VAC (default)
Frequency Range	40Hz - 70Hz (Auto Sensing)
Input Connection	IEC 320 C13 to BS 1363A Plug
OUTPUT
Output Voltage	230VAC (+10%/-18%)
Frequency Range (Battery Mode)	50Hz / 60Hz
Output Connections	(2) UNI
TOPOLOGY
Transfer Time	15ms (Typical), 40ms (Maximum)
Waveform (Battery Mode)	Modified Sinewave
EFFICIENCY
Battery Mode	>80%
BATTERY
Battery Voltage	12 VDC
Charging Algorithm	3-stage charging
AC Charger Current (Configurable)	10A/15A/20A (Default) / 25A
Floating Charge Voltage	27.4V
Over Charging Voltage	32V
SYSTEM
Indicators	LED & LCD
Audible Alarms	Low Battery, Overload, Fault
SAFETY
Overload Protection	1min > 110%, 20s > 120%, 0s > 150%
Full Protection	Discharge, Overcharge, Overload, Short Circuit, Over Temperature Protection
COMMUNICATIONS / MANAGEMENT
Auto Charge	Yes
Auto Restart	Yes
ENVIRONMENT
Operating Temperature	0 - 55 °C
Relative Humidity	5% to 95% (non condensing)
PHYSICAL PROPERTIES
Dimensions (W x D x H) (mm)	244 X 309.5 X 96
Net weight (kg)	2.5
